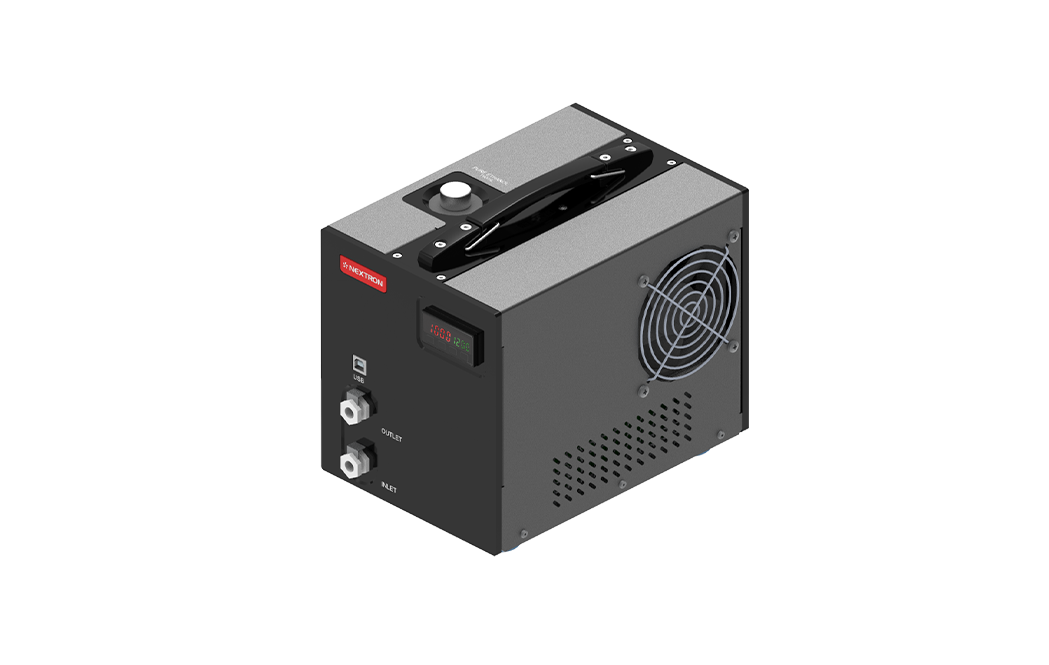

Nextron Micro Chiller
The Nextron Micro Chiller is a system designed to maximize the temperature control capabilities of our equipment. It supplies coolant to maintain the temperature of chambers based on PT and CH stages, and its compact design allows for flexible integration into a wide range of research and experimental environments. Furthermore, it communicates with the temperature controller to enable fully automated operation, ensuring precise and stable temperature management.
| General Specification | ||
|---|---|---|
| Manufacturer | Nextron Corporation | |
| Product Name | Nextron-Micro Chiller (N-μChiller) | |
| Model Number | NMC-200 | |
| Dimensions 1) | W | 160 mm |
| D | 230 mm | |
| H | 180 mm | |
| Weight | 5 kg | |
| Power Supply | 100 - 240 VAC, 50/60 Hz | |
| Power Consumption | 200 W | |
| Reservoir capacity | 180 mL | |
| External Port | Communication Interface | USB 2.0 Type B |
| Coolant Inlet / Outlet | Quick connector socket for 1/8” I.D. tube | |
| Using Coolant | Pure ethyl alcohol | |
1) Excluding connectors and feet.
| Technical Information | |
|---|---|
| Cooling Capacity1) | 80 W |
| Operating Temperature | 5 − 35 °C |
| Operating Humidity1) | 35 − 85 %RH |
| Cooling Temperature Range1) | -5 ℃ − Ta (Ambient Temperature) |
| Temperature Accuracy | ± 1 °C |
| Temperature Resolution | 0.1 °C |
| Typical Flow rate | 0.26 L/min @ 0.06 bar |
| Control Operation | PID Controlled SSR |
1) Based on 25 °C operating ambient condition.
Dimension
(Unit: mm)
|
|
|---|---|

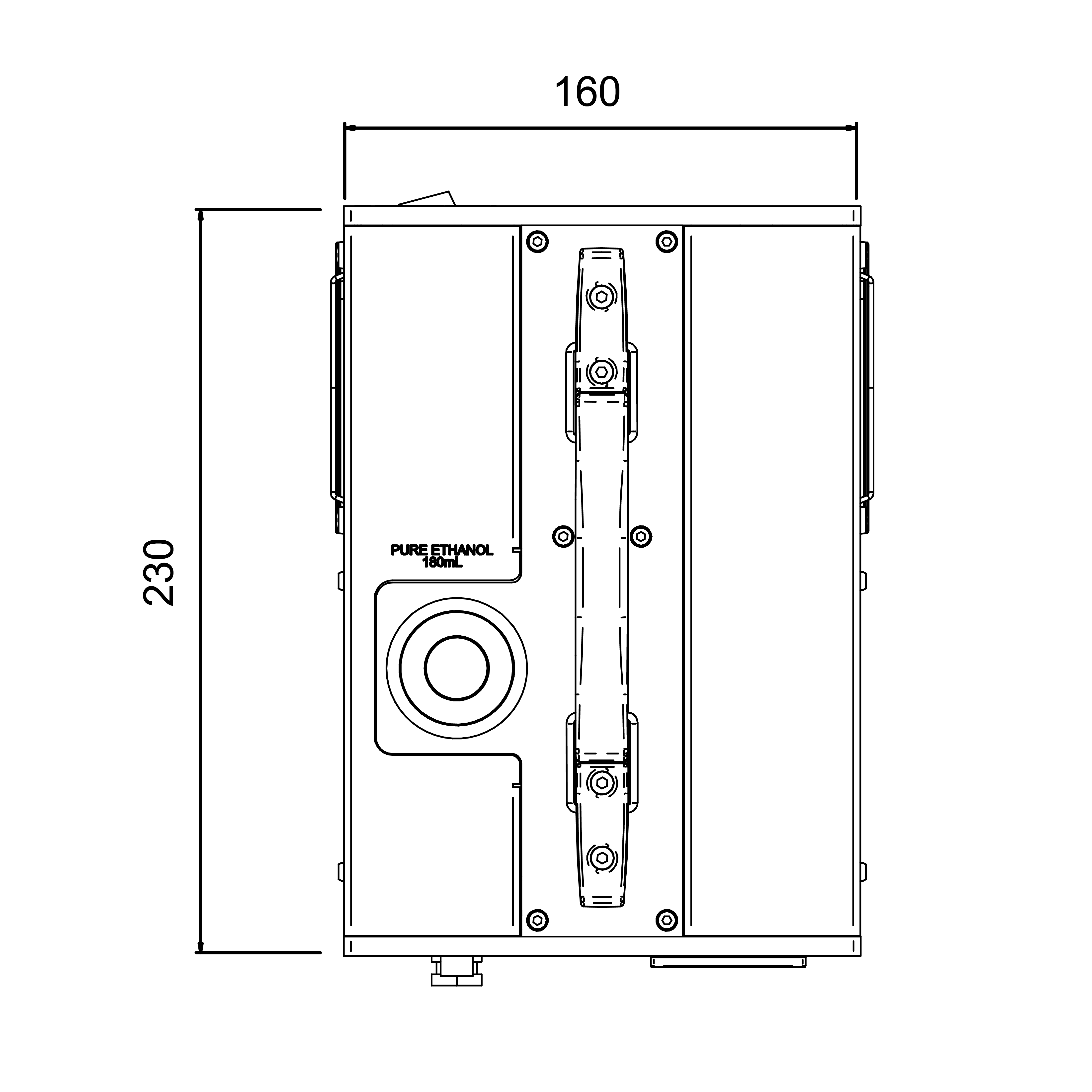

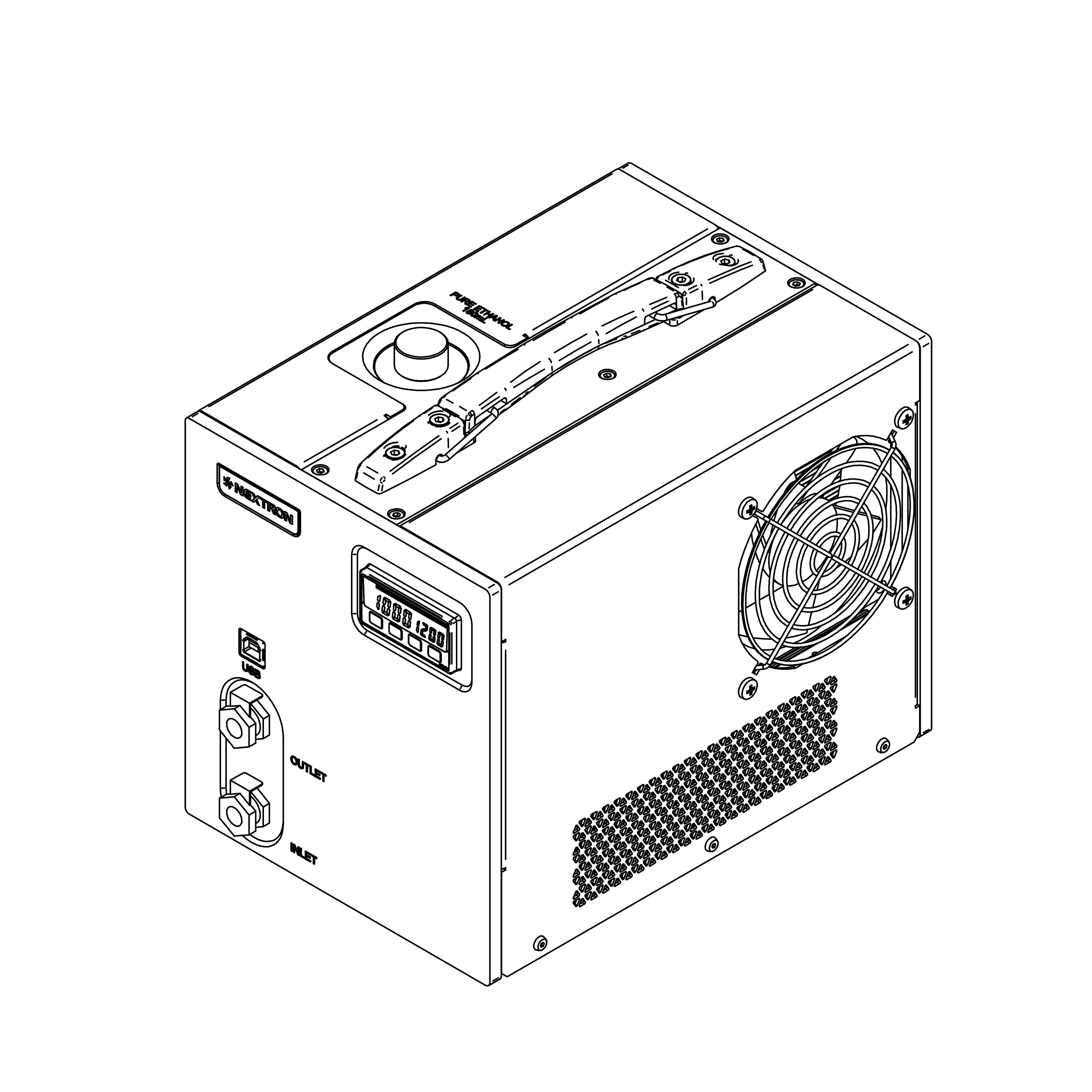

| Top | 3D |
|
|

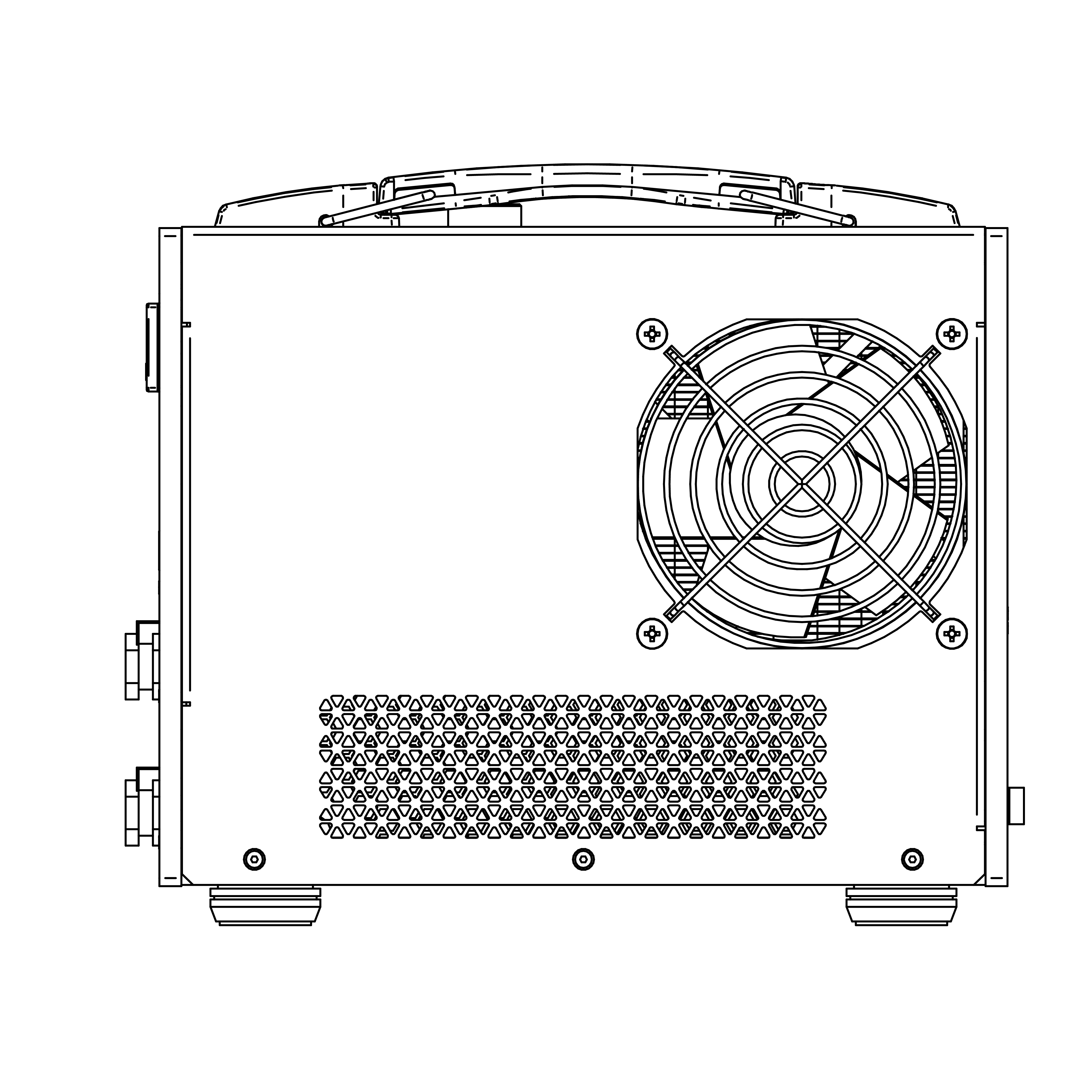

| Front | Right |
