Raman Battery Chamber
The In-situ Raman Battery Chamber enables direct Raman analysis of battery cross-sections,
providing clear insight into interfacial behavior between anode, cathode, and separator layers.
Designed for operando studies of both liquid electrolyte and solid-state batteries, the system
features integrated pressure control and force monitoring, enabling pressure-coupled mechanistic
studies with integrated force control. Convenient electrolyte injection and simplified sample
preparation ensure reliable and efficient in-situ measurements.
| Mechanical / Chamber Specification |
Parameter |
Description |
Remark |
| Chamber Material |
PEEK |
Chemical resistant |
| Weight |
150 g |
|
| Corrosion resistance |
Metal parts Pt coated |
Electrolyte compatibility |
| Battery holder material |
Stainless 316L |
|
| Sample / Electrode Specification |
Parameter |
Description |
Remark |
| Number of Electrodes |
2 ea |
Optional 3 ea |
| Electrode Contact Type |
Banana plug |
|
| Acceptable Electrode Size |
≤ 20 mm × 20 mm |
Max pressure 500 kPa |
| Maximum Stacked Cell Thickness |
3 mm |
|
| Optical / Raman Measurement |
Parameter |
Description |
Remark |
| Optical Window Material |
Sapphire |
Replaceable |
| Window Dimension |
Ø28 × 1.0 mm |
|
| Optical Working Distance |
>1 mm |
Raman objective clearance |
| Electrolyte / Sealing |
Parameter |
Description |
Remark |
| Sealing |
O-ring Type |
FFKM |
| Electrolyte Port |
1/16″ Finger tight fitting |
Inlet / Outlet |
| Leak Rate |
≤ 1 × 10-6 mbar·L·s-1 |
Air equivalent (He leak test) |
| Force Control & Measurement |
Parameter |
Description |
Remark |
| Maximum Applied Force |
200 N |
Micrometer screw control |
| Force Sensor Resolution |
≤ 0.5 N |
Integrated force sensing |

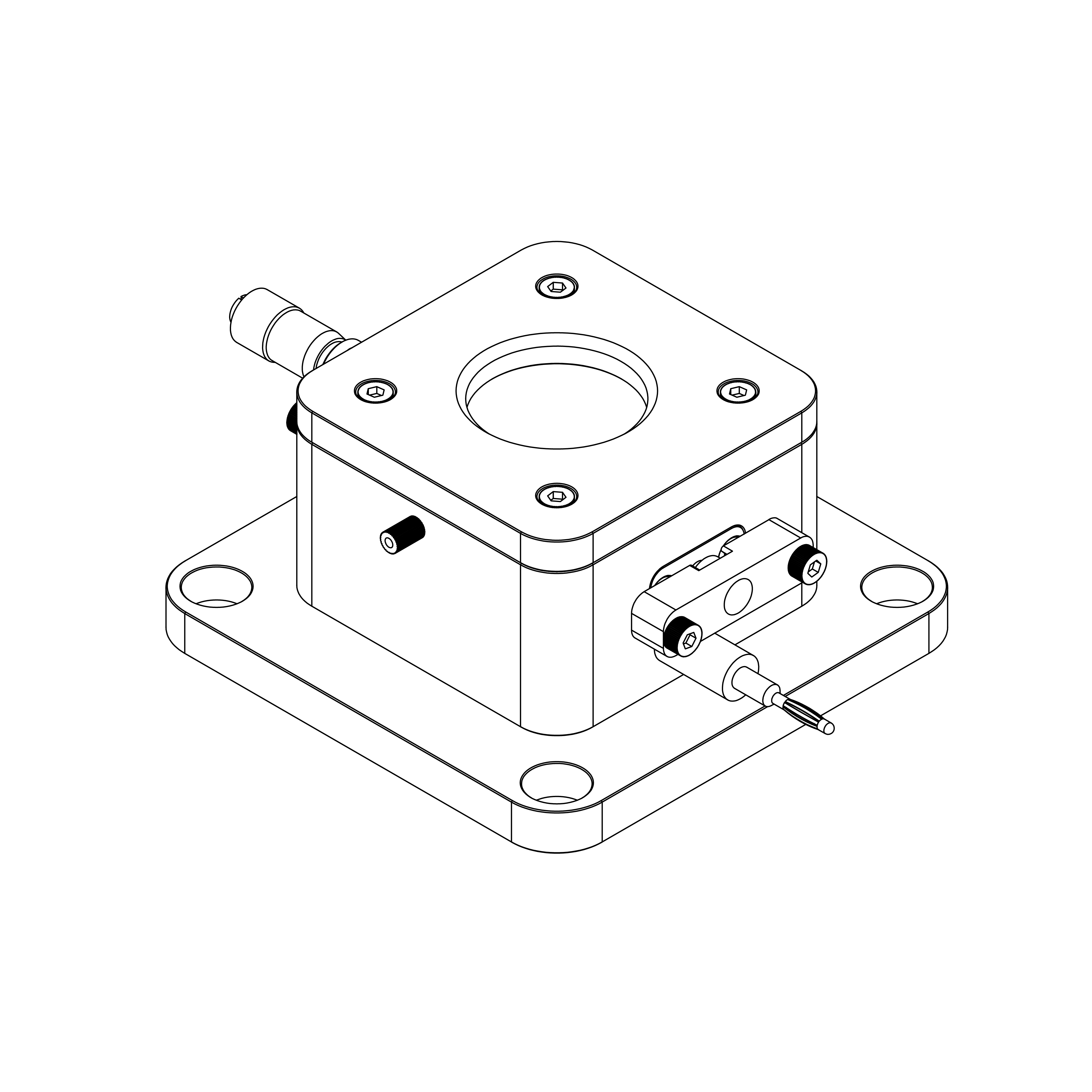

Dimension

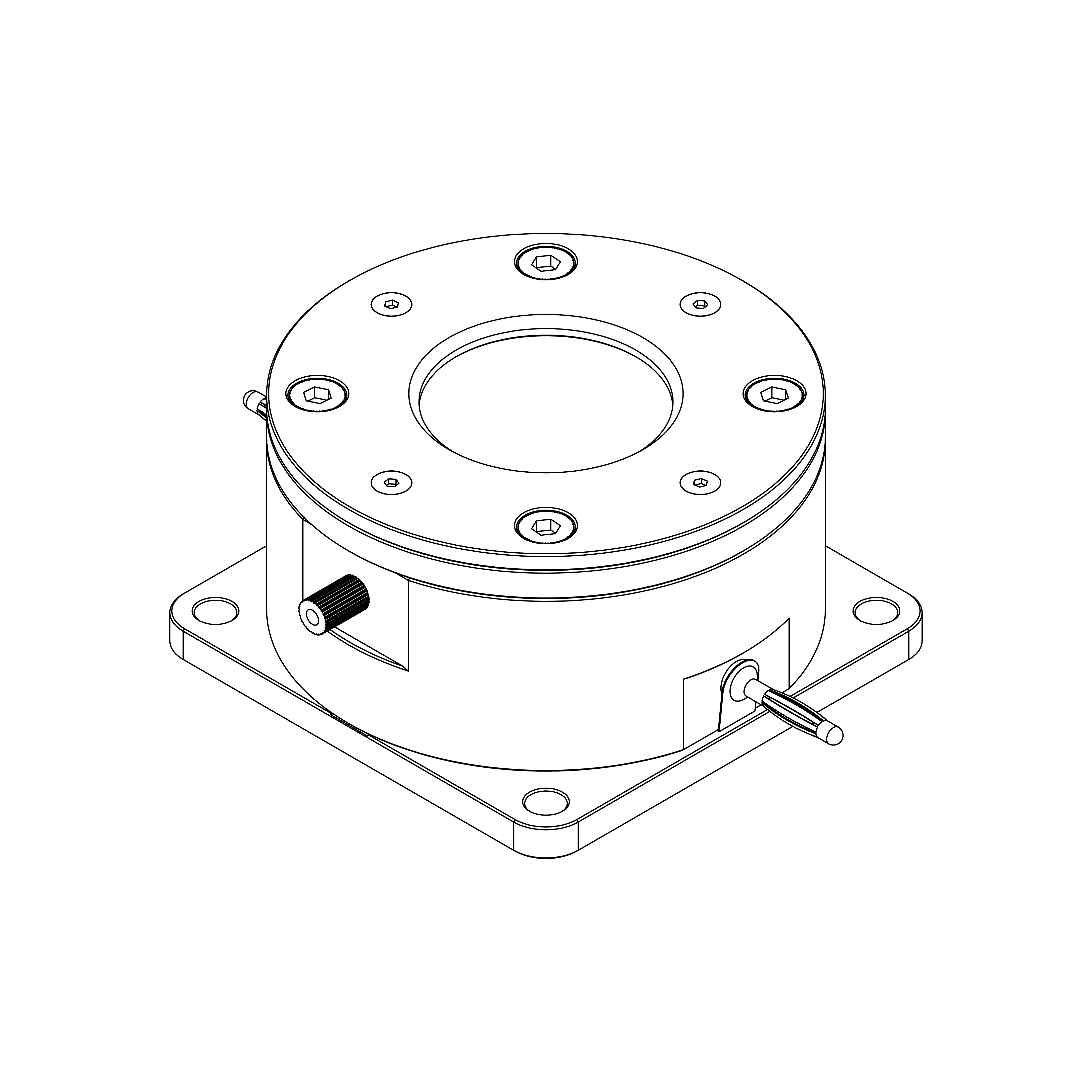

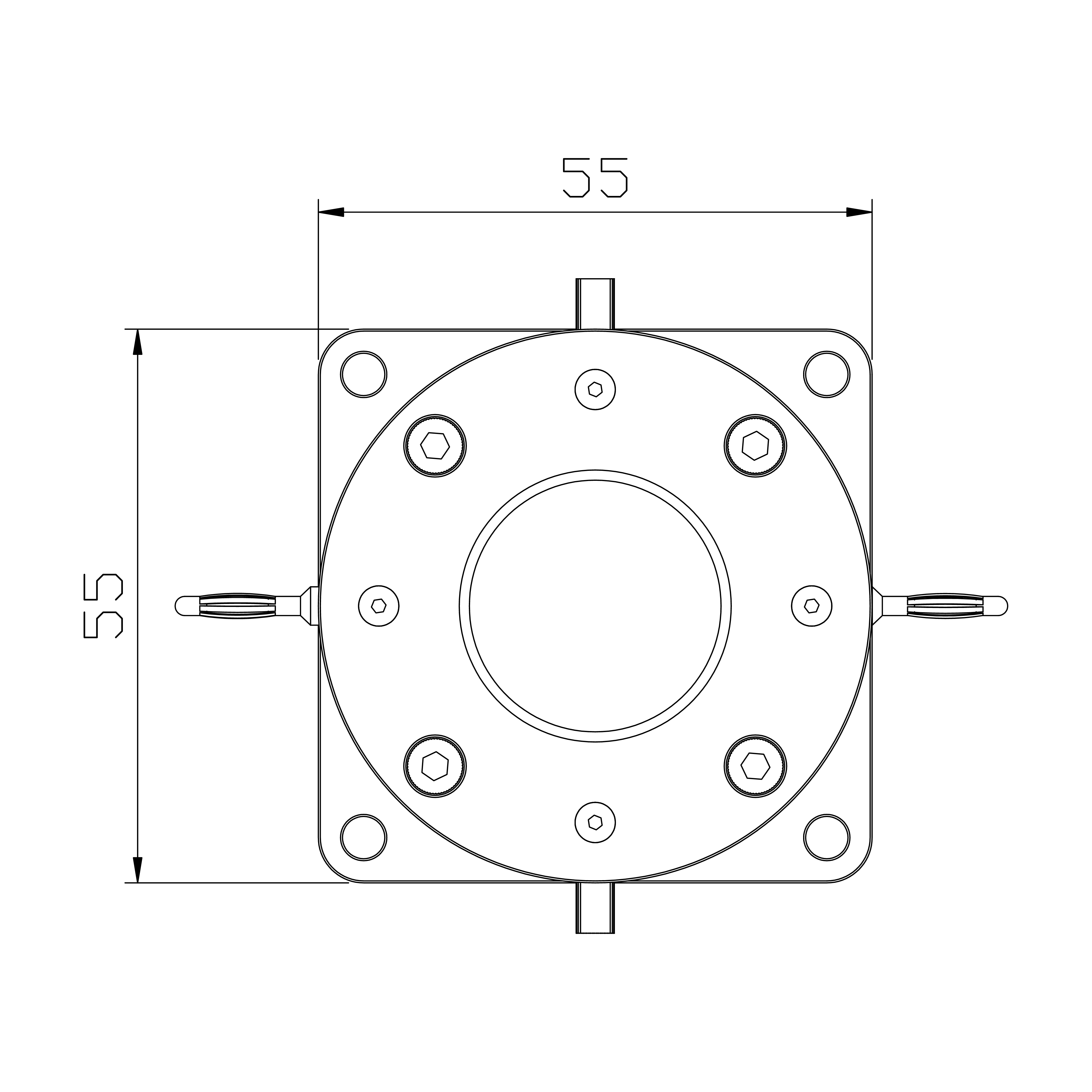

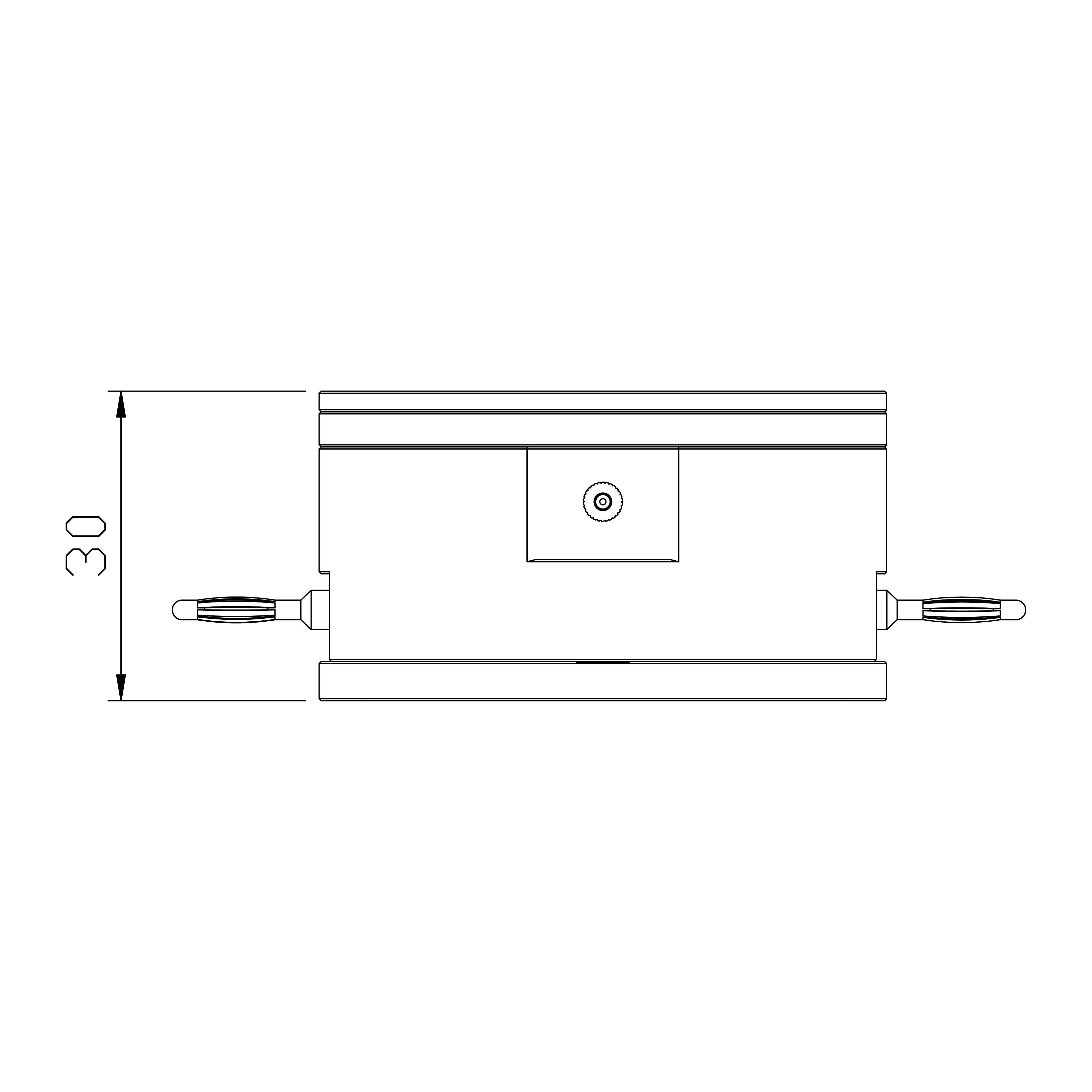

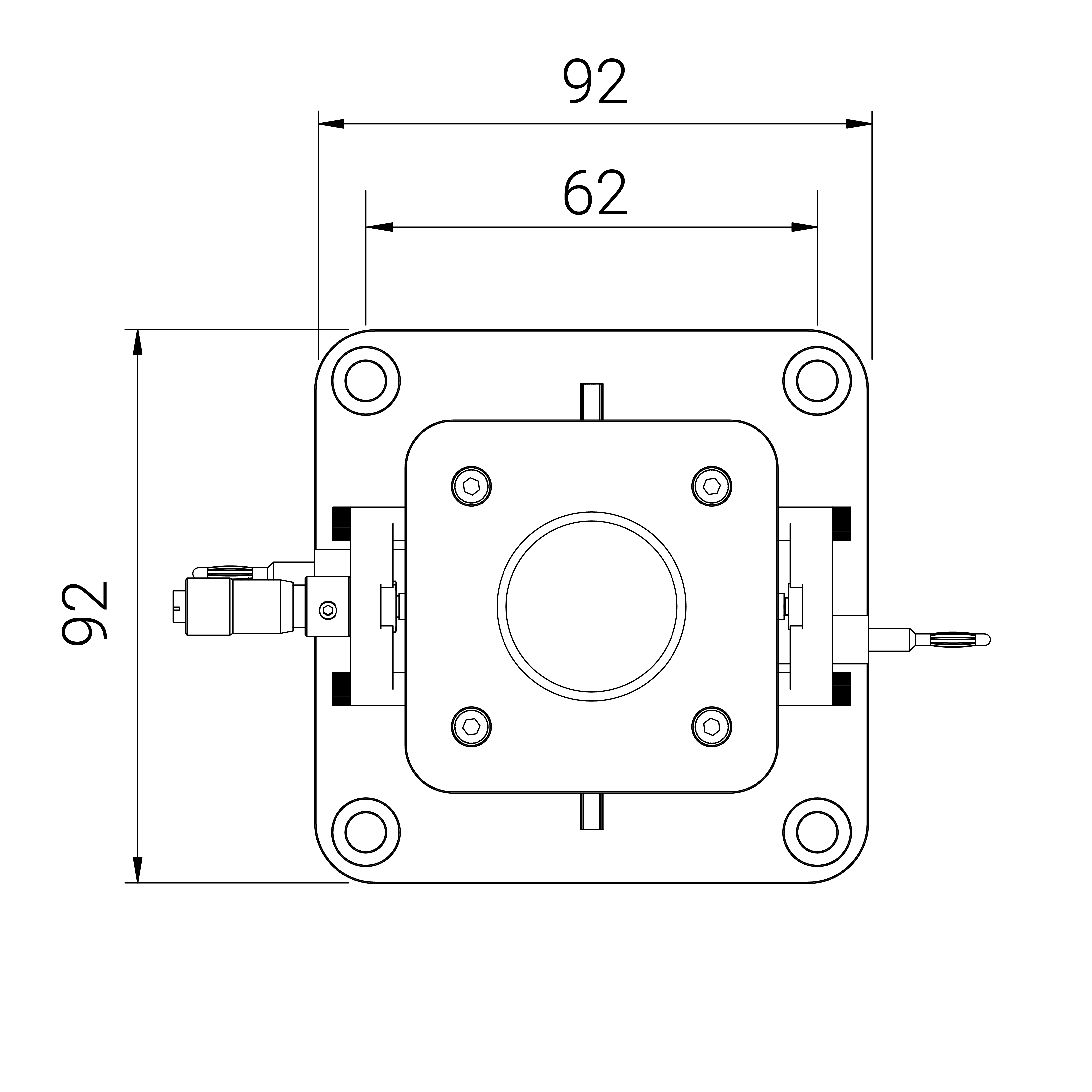

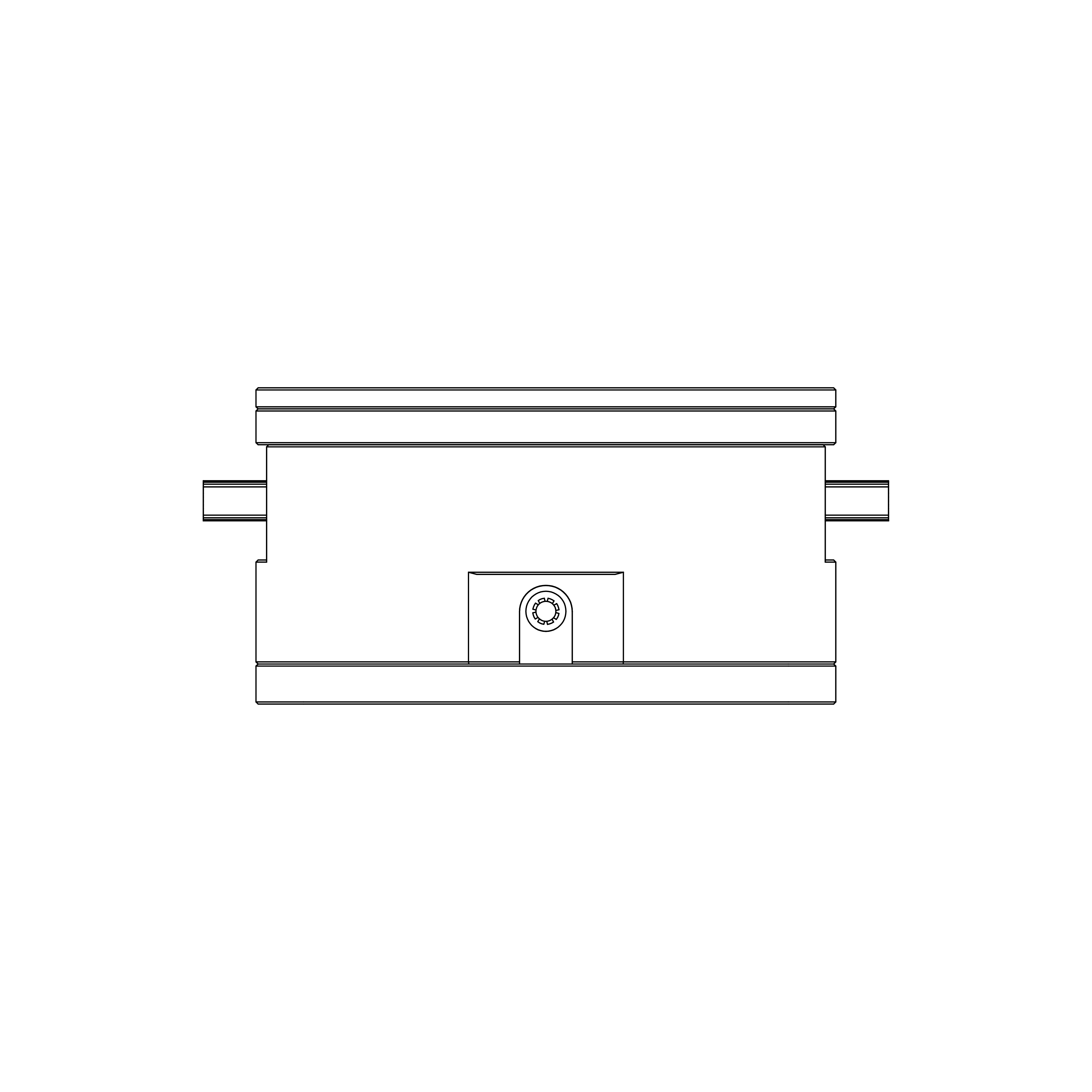

(Unit: mm)
Technical Data
Charging
Disharging
Real-time

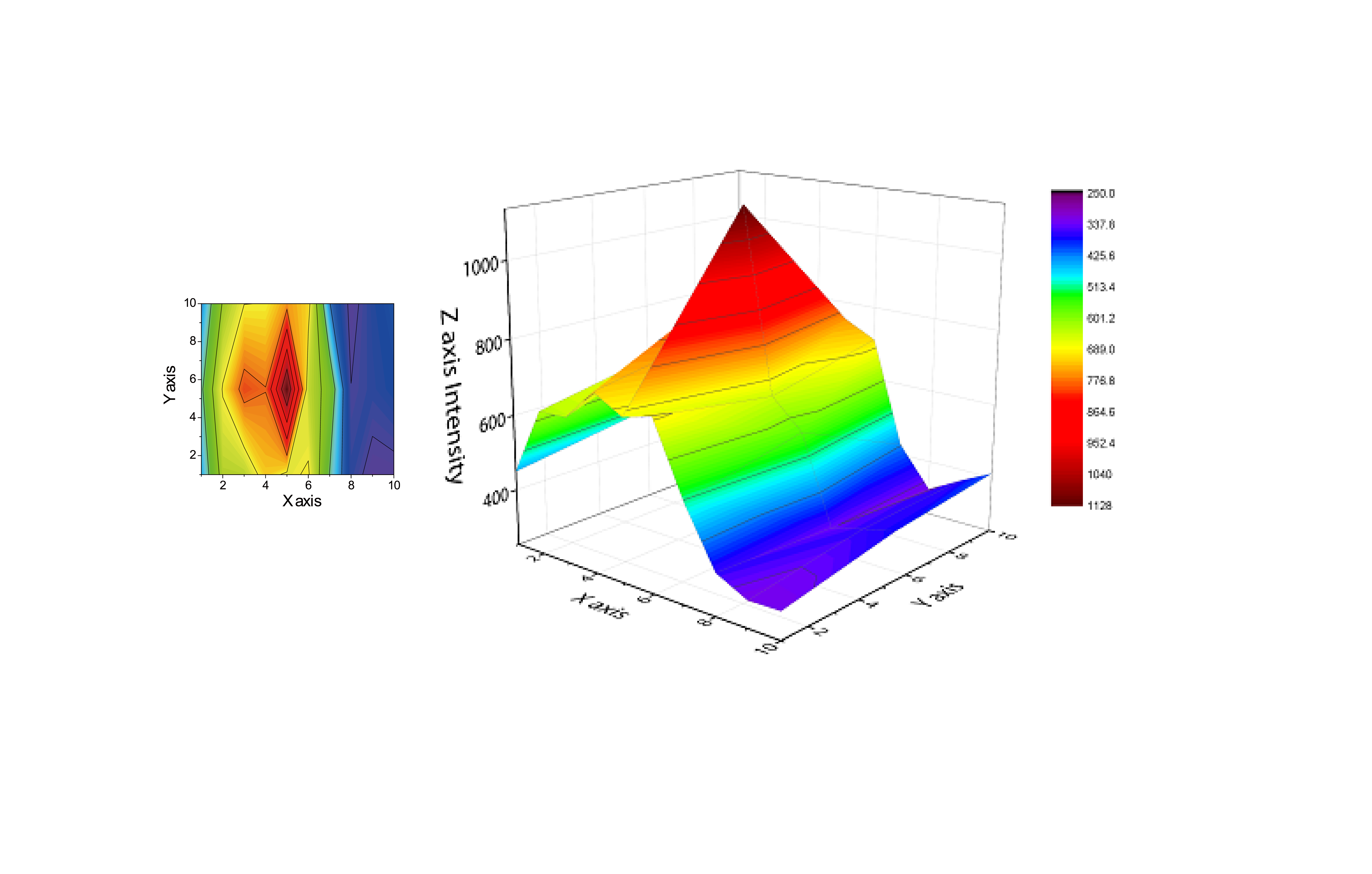

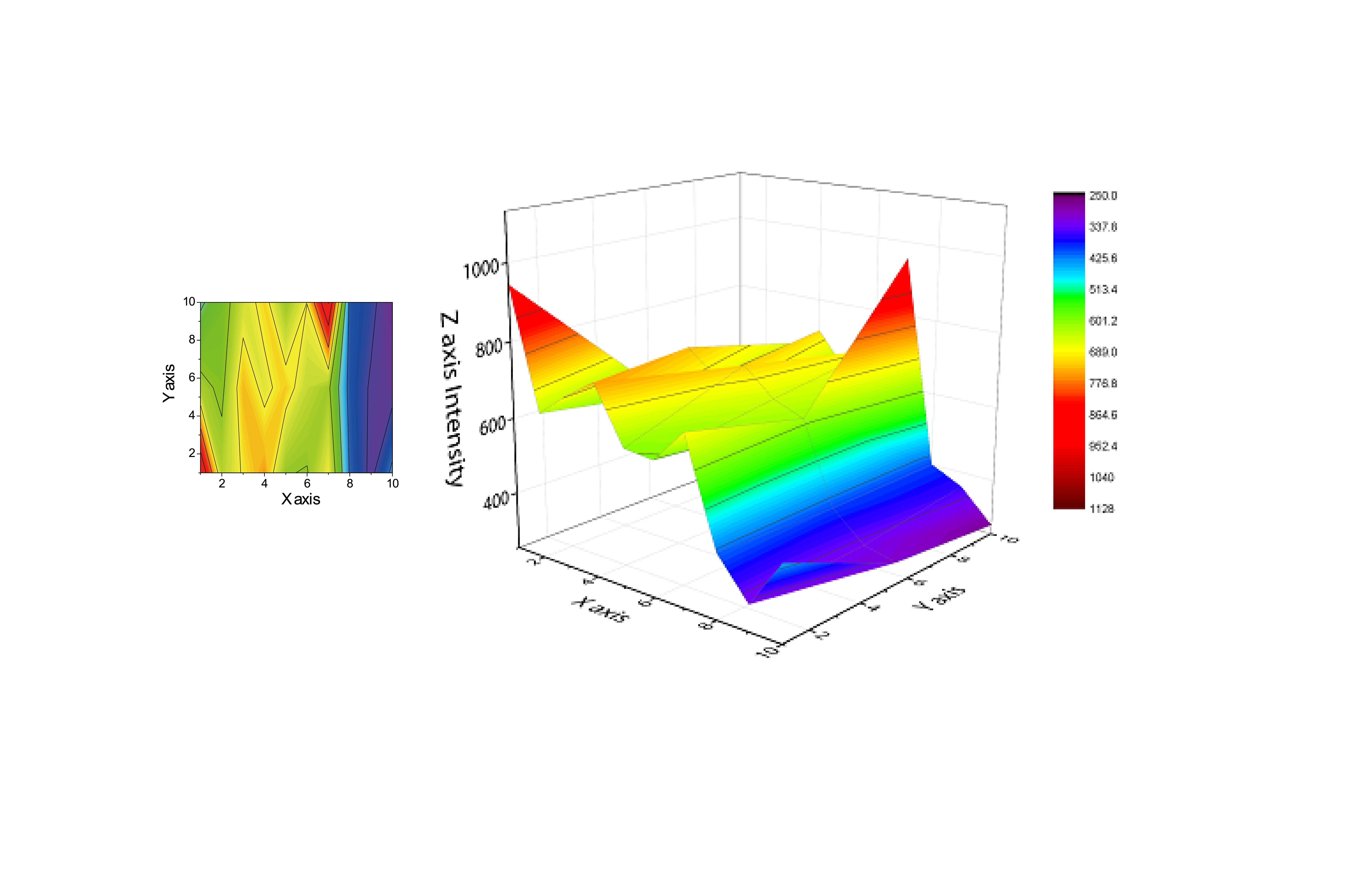

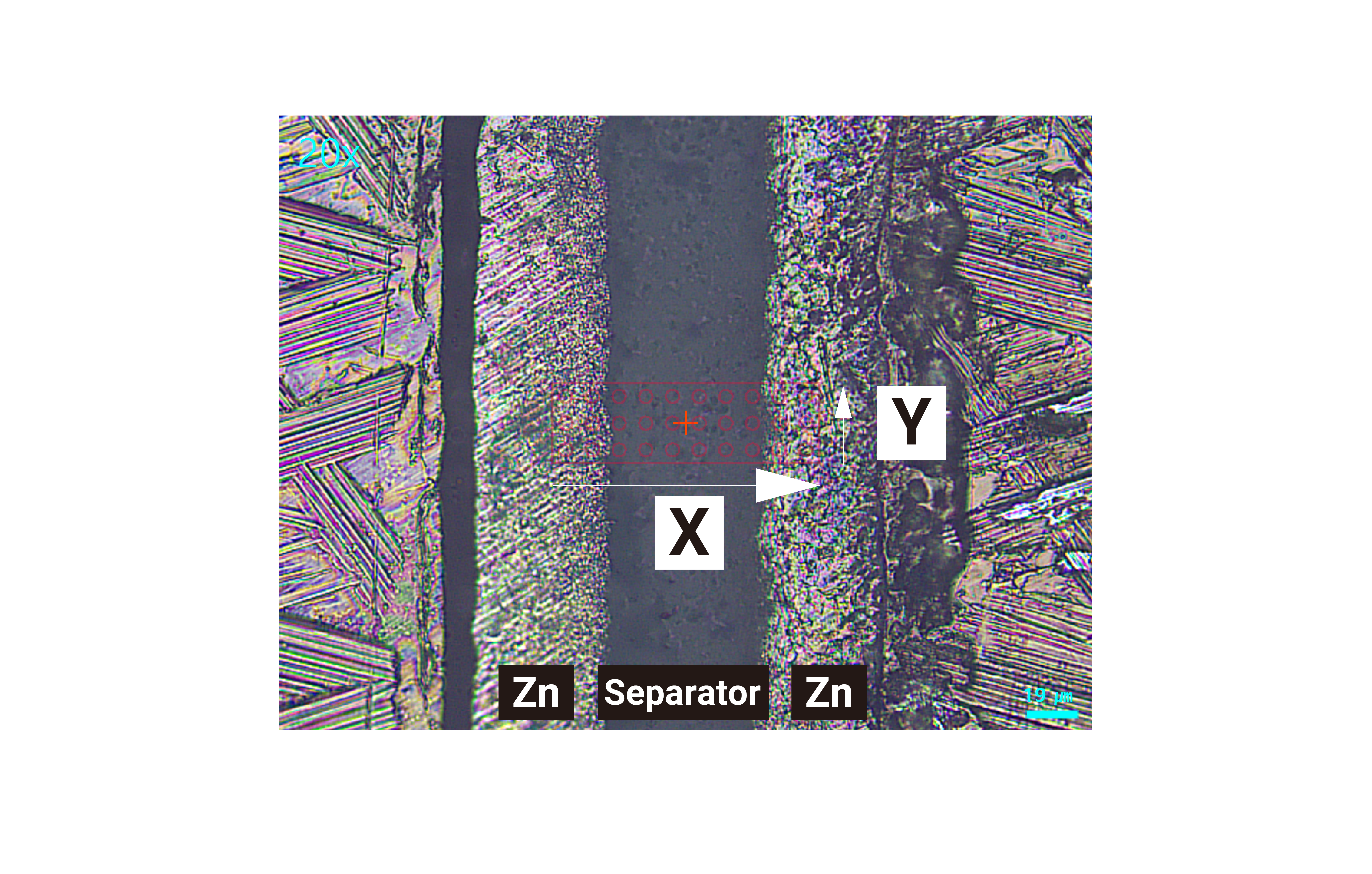

Observation of Zn Dendrite Formation and Dissolution
Electrolyte: 6 M KOH
Electrode configuration: Zn | Separator | Zn
Current density: 1 mA cm -2
Raman peaks observed: 440 cm -1 / 560 cm -1
